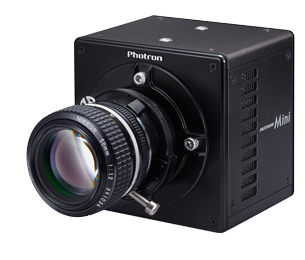

FASTCAM Mini UX100

The Photron FASTCAM Mini UX100 high speed camera packs a lot of performance in such a small package, providing 1,280 by 1,024 pixel resolution to 4,000 frames per second (fps) and reduced resolution operation all the way to 800,000 fps, with 1,280(H) by 720 (V), equivalent to 720 HD video resolution, to 6,400 fps. This makes the UX100 a small and lightweight camera ideally suited for applications as varied as fluidics, life sciences or ballistic testing. A global shutter provides blur free imagery with a minimum shutter speed of 1µs with 12-bit pixel depth (36-bit for the color version) from the CMOS pixels 10µm square pixel providing an ISO 12232 Ssat certified light sensitivity of 10,000 ISO for the monochrome version.

Applications

Biomechanics
Life sciences
Off board automotive safety testing
Defense and aerospace research
Fluid dynamics
Material science

Features

Performance examples:

• 4,000 fps at 1,280 x 1,024 pixel resolution
• 5,000 fps at 1,280 x 1,000 pixel resolution
• 6,250 fps at 1,280 x 800 pixel resolution
• 10,000 fps at 896 x 488 pixel resolution
• 25,000 fps at 1,280 x 200 pixel resolution
• 200,000 fps at 1,280 x 24 pixel resolution
• 800,000 fps at 640 x 8 pixel resolution

Self-contained, compact and lightweight camera 120 mm
(4.7″)H×120mm (4.7″)W×90mm (3.6″)D and 1.5 Kg

Sensitivity: ISO 12232 Ssat standard

• ISO 10,000 monochrome
• ISO 5,000 color

Compatibility with 1 inch C mount and Nikon G type lenses

4GB, 8GB and 16GB memory options and high performance GigaBit Ethernet interface to PC
