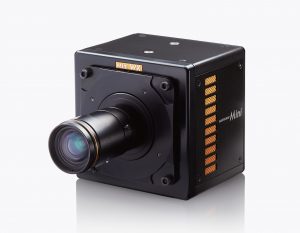

FASTCAM Mini WX100

Compact High-Speed Camera
with High Image Resolution

The FASTCAM Mini WX100 high-speed camera delivers exceptional high resolution imaging performance by providing 2048 x 2048 pixel resolution at 1,080fps (Mini WX50 750fps), 1920 x 1080 pixel full HD resolution at 2,000fps (Mini WX50 1,500fps) and frame rates up to 80,000fps (Mini WX50 67,500fps) at reduced image resolution. The system’s flexible Region of Interest (ROI) capability allows the user to choose an image aspect ratio appropriate for the subject being recorded.

The FASTCAM Mini WX is compact, lightweight and also rugged (operationally tested to 100G, 10ms, 6-axes). This unique combination of high resolution imaging performance in a compact, lightweight and rugged package makes the system well suited to a wide range of industrial and scientific applications. It is ideally suited for biomechanics, microscopy, automotive safety testing and defense applications.

The FASTCAM Mini WX utilizes Photron’s proprietary CMOS image sensor design expertise, including on-chip microlens technology to optimize light sensitivity. The camera provides broadcast quality high definition image resolution, color fidelity and dynamic range. Recording memory options from 8GB to 32GB permit the capture of over 10 seconds of uncompressed and un-interpolated data at 1,000fps with full HD image resolution.

Standard operational features of the FASTCAM Mini WX include a mechanical shutter to allow remote system calibration, Gigabit Ethernet Interface for reliable system control with high-speed data transfer to PC, and the ability to switch off cooling fans to eliminate vibration when recording at high magnifications.

Applications

Biomechanics
Life sciences
Off board automotive safety testing
Defense and aerospace research
Fluid dynamics
Material science

Features

4-Megapixel CMOS Image Sensor:
2048 x 2048 pixels at 1,080fps
1920 x 1080 pixels at 2,000fps

Maximum Frame Rate:

80,000fps (Mini WX100 type 80K)

Class Leading Light Sensitivity:
ISO 12232 Ssat
• ISO 6,400 monochrome
• ISO 2,000 color

Global Electronic Shutter:
1ms to 2.7μs independent of frame rate
