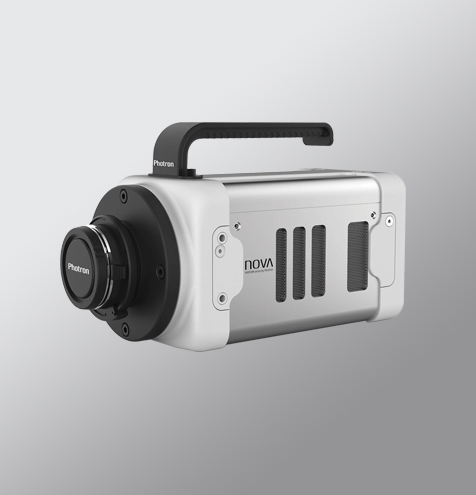

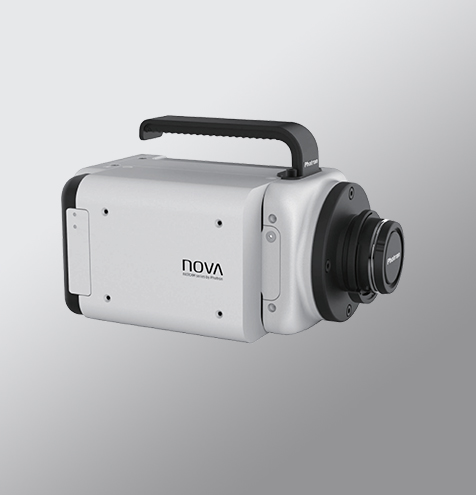

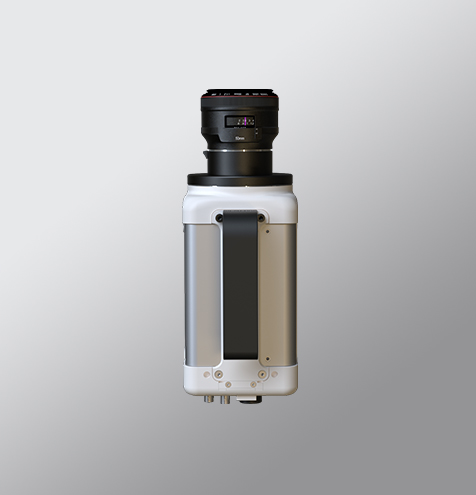

FASTCAM NOVA S6 - S9- S12

The FASTCAM NOVA brings together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications. Available in three different models, the FASTCAM NOVA offers 12-bit image recording rates up to 12,800 frames per second (fps) at megapixel image resolution, and shutter speeds to 0.2µs. Recording rates to 1,000,000fps are available at reduced image resolutions. All of this available from a camera that is rugged, compact, lightweight and provides the best light sensitivity in its class.

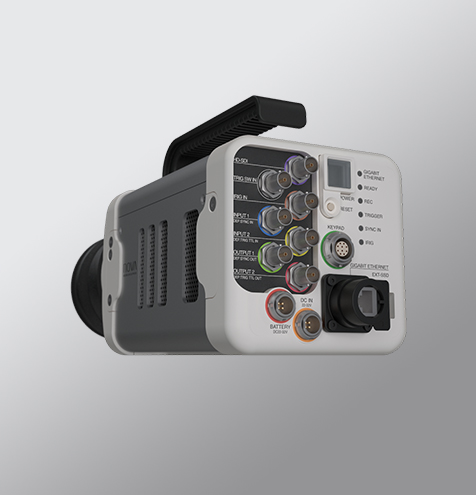

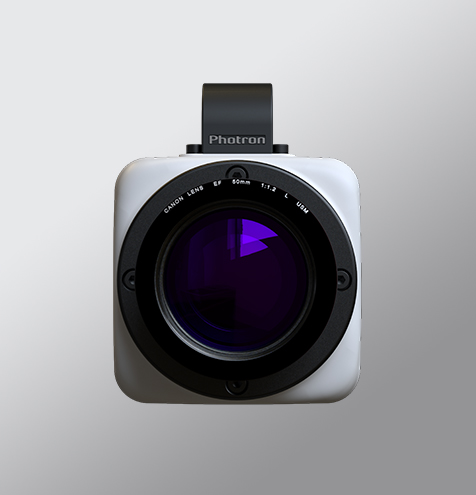

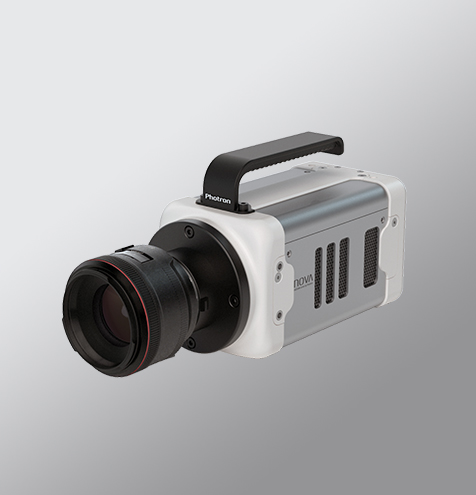

Standard features of the FASTCAM NOVA include an internal mechanical shutter to allow remote system calibration, a high-performance Gigabit Ethernet interface for camera control and high-speed image download, memory segmentation that allows recording into one memory partition while downloading from another, and compatibility with a number of industry standard lens formats to allow the use of Nikon G-Type, C-mount and Canon EF lenses.

The FASTCAM NOVA also features a sealed body design that prevents dust and corrosive particles from contaminating sensitive electronics. An optional FASTDrive SSD can be used for the download of images at up to 1GB per second.

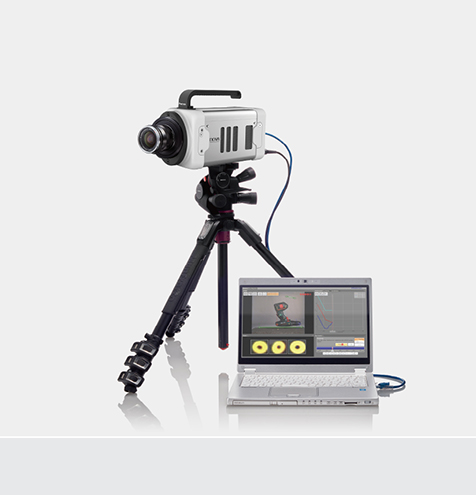

Intuitive and feature rich Photron FASTCAM Viewer (PFV) software is included with each FASTCAM NOVA camera. Also included is a Photron Device Control SDK that allows integration of the camera with user-specific software, and libraries for controlling the camera within a MATLAB® or LabView environment.

Target Applications Include:

Biomechanics
Life sciences
Material sciences
Onboard and offboard automotive safety testing
Defense and aerospace research
Fluid dynamics / PIV

Features

• 1024 x 1 024 pixel resolution
• 12,800fps at full resolution
• Global electronic shutter to 0.2µs (independent of frame rate)
• ISO 64,000 monochrome
• ISO 16,000 color
• Up to 64GB internal memory
• Optional removable solid state drive
• HD-SDI output
• Gigabit Ethernet connection
