FASTCAM IS-1MThe world's leader in ultra-high-speed, high resolution recording

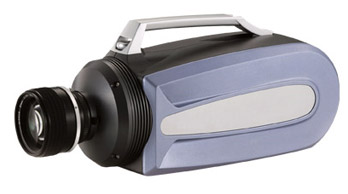

The ultra-high-speed, high-resolution Fastcam IS-1M camera system is a revolutionary 312 x 260 pixel resolution ISIS (in-situ image storage) CCD sensor system designed to capture a wide range of ultra high-speed phenomena at up to 1,000,000 frames per second (fps). The key feature of the new camera is the sensor where the signal storage areas for the recorded images are incorporated within the chip. Light entering the light sensitive part of the IS-CCD is converted into an electrical signal before being transmitted sequentially to the storage areas immediately adjacent to the sensitive area of the pixel before being transmitted to the output stage. This 'in-situ' storage method avoids the sequential backlog, caused by the limited number of output circuits, of conventional CCD's, enabling much higher framing rates to be achieved. Extremely light sensitive, the 10-bit monochrome Fastcam IS-1M captures a wide range of high speed events, even in low light conditions, while the 100 frame image buffer provides adequate synchronous record duration for the majority of ultra high speed phenomena such as ink jet droplet measurement, micro PIV, combustion, crack propagation or blast dynamics. The Fastcam IS-1M is provided with easy to use software via USB. |
FeaturesUltra-high-speed video recording at up to one million frames per second
Ultra-high speed and high spatial resolution High-sensitivity CCD captures a wide range of high-speed phenomena Inkjet Printing Recording speed: 250,000fps This example shows the discharge of inkjet droplets. The images show the production of ink drops and satellite droplets during discharge, as well as the behavior of the meniscus at the nozzle port following discharge.
Hypervelocity Impact

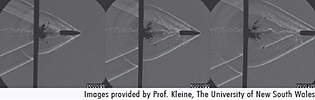

Recording speed: 500,000fps This example shows a high-speed flying object, recorded using Schlieren photography. The images show how the high-speed flying object penetrates an obstruction. The shock wave generated as the object exceeds the speed of sound is clearly evident.

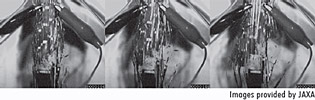

Observation of materials failure during a CFRP static tensile test Recording speed: 250,000fps This example shows the failure of a carbon-fiber reinforced plastic (CFRP) 0-angle, unidirectional material. The images show the development of cracks orthogonal to the fibers in the material. The subsequent setting up of tears along the direction of the fibers is faithfully reproduced.
| ||
