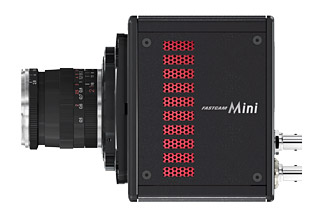

FASTCAM Mini AX100/AX50

Outstanding Light Sensitivity in a Compact Package

The Photron FASTCAM Mini AX100 and Mini AX50 high-speed cameras provide high frame rates, extraordinary light sensitivity and superior image quality in a compact, lightweight and high-G camera design. Providing 1,024 x 1,024 pixel resolution at up to 4,000 frames per second (fps) and reduced resolutions to 540,000 fps, the Mini AX100 and Mini AX50 deliver the performance required for demanding industrial, military and laboratory applications.

With light sensitivity of ISO 40,000 monochrome and ISO 16,000 color (using the ISO 12232 Ssat standard), the FASTCAM Mini AX100 and Mini AX50 have better sensitivity than other mid-range high-speed cameras. Higher light sensitivity means that less additional lighting is required to capture a high-speed event. It also means that faster frame rates, shorter shutter speeds and greater depths of field are provided under equivalent lighting conditions.

Contained within a 120mm x 120mm x 94mm camera body weighing just 1.5kg, the FASTCAM Mini AX100 and Mini AX50 are uniquely suited for use in a wide range of applications. The cameras are designed for operation in high shock and vibration environments, allowing them to be utilized in automotive crash test facilities and on military test ranges.

The FASTCAM Mini AX100 and Mini AX50 are identical with a single exception. The Mini AX100 is the faster camera, providing 4,000 fps at full resolution. The lower priced Mini AX50 allows 2,000 frames per second at full resolution.

Target Applications Include:

Biomechanics
Life sciences
Material sciences
Onboard and offboard automotive safety testing
Defense and aerospace research
Fluid dynamics / PIV

Features

Performance examples (assumes Mini AX100):
• 4,000 fps @ 1,024 x 1,024 pixels
• 10,000 fps @ 768 x 528 pixels
• 20,000 fps @ 384 x 384 pixels
• 50,000 fps @ 256 x 128 pixels
• 100,000 fps @ 128 x 96 pixels
• 540,000 fps @ 128 x 16 pixels

Self-contained, compact and lightweight camera
• 120mm (4.7″) H x 120mm (4.7″) W x 94mm (3.7″) D excluding protrusions, and 1.5kg (3.3lbs)

Sensitivity: ISO 12232 Ssat standard
• ISO 40,000 monochrome
• ISO 16,000 color

Suitable for operation in High-G environments. Operation tested to 100G, 10ms, 6 axes

4GB, 8GB and 16GB memory options and high performance Gigabit Ethernet interface to PC
